| Name | Value |
| Package | SFP28 LR |
| Data Rate | 25Gbit/s |
| Wavelength | Tx1330nm/Rx1270nm |
| Connector | Simplex LC |
| Reach | 10km |
| Temp | 0-70 |
| DDM | YES |
| Fiber Type | SMF |

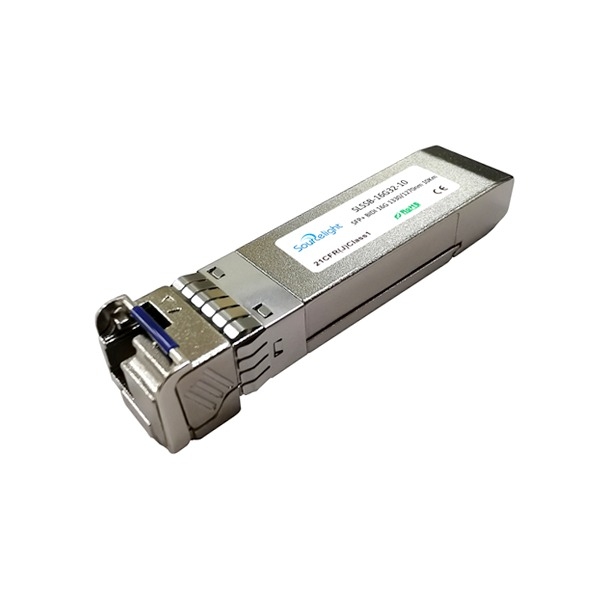

25G SFP28 BIDI transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Package (Form Factor) | SFP28 BIDI |
| Data Rate (typical) | 25.78Gb/s |
| Centre Wavelength | Tx1330nm/Rx1270nm |
| Distance | 10km |
| Diagnostics | Digital Monitor |
| Transmitter | DFB Laser |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -7~+2 |
| RX Sensitivity (dBm) | -13.3 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |
