| Name | Value |
| Product Description | CFP4 |
| Data Rate | 100Gbit/s |
| Reach | 10km |
| Tx | LWDM EML |
| Rx | PIN |
| Connector | Duplex LC SM |

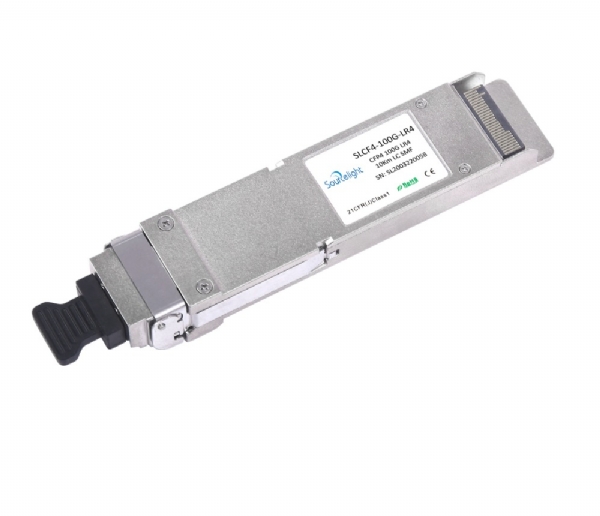

SLCF4-100G-LR4 is 100G CFP4 LR4 optical Transceiver integrates receiver and transmitter path on one module.
The module is compliant with IEEE 802.3ba 100GBASE-LR4 and ITU-T G.959.1, and OIF CEI-28G-VSR. The MDIO management interface complies with IEEE 802.3 Clause 45 standard. The transceiver complies with CFP MSA CFP4 Hardware Specification, CFP MSA Management Interface Specification, and OIF CEI-28G-VSR standards.
| Package (Form Factor) | CFP4 LR4 |
| Data Rate (typical) | 25.78125Gbps/CH |
| Centre Wavelength | 1296nm, 1300nm, 1305nm and 1309nm |
| Distance | 10KM SMF |
| Diagnostics | Digital Monitor |
| Transmitter | LWDM EML |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -4.3~+4.5 |
| RX Sensitivity (dBm) | -8.6 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |
